Outdoor Fixed
LED Display.
Configuration

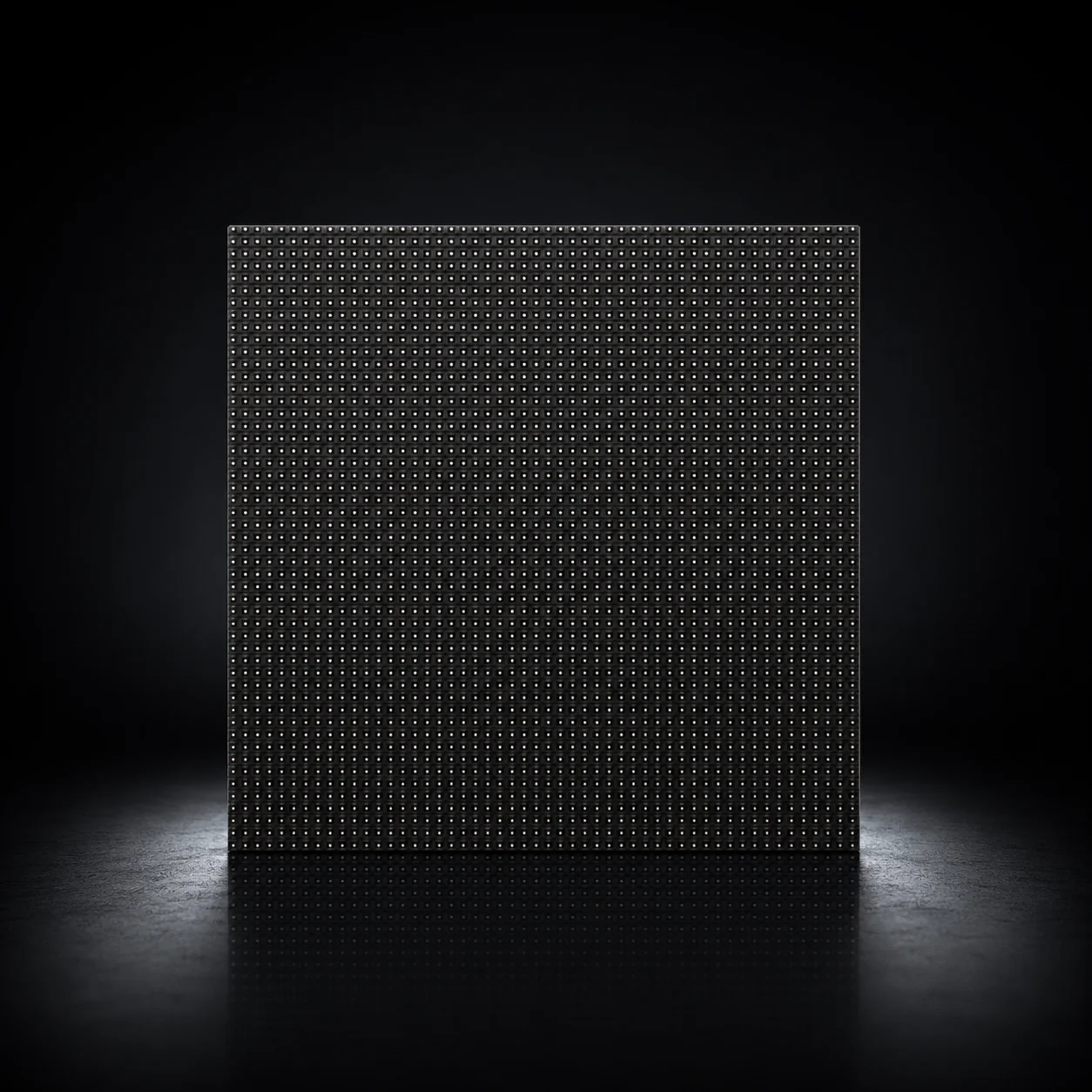

Front Maintenance Hexagonal Lock
Module adopts the front maintenance lock design — easily disassembled with a hexagonal wrench. Module back filled with glue for IP54 waterproofing. Installable without maintenance channels, saving space and cost.
PITCH
P4.81–P10
IP
IP54/IP65
BRIGHTNESS
≤5000–8500 cd/m²
MAINTENANCE
Front
Key Features
Built different.
Hex Wrench Front Access
Lock design allows easy module disassembly from the front with a standard hexagonal wrench — no tools beyond the wrench required.
IP54 Glue-Filled Module
Module back filled with glue for IP54 protection — installable without rear maintenance channels.
120° Ultra-Wide Viewing
Horizontal and vertical 120° viewing angle — bright and clear from any position in the viewing zone.
≤8500 cd/m² DIP Option
P10 DIP variant reaches ≤8500 cd/m² — maximum brightness for intense outdoor sunlight environments.
Deep Grayscale Processing
Rich and delicate colors, clear and natural picture quality for advertising and public display content.
Stack & Hoist Installation
Box body supports stacking and hoisting — convenient for any outdoor installation configuration.

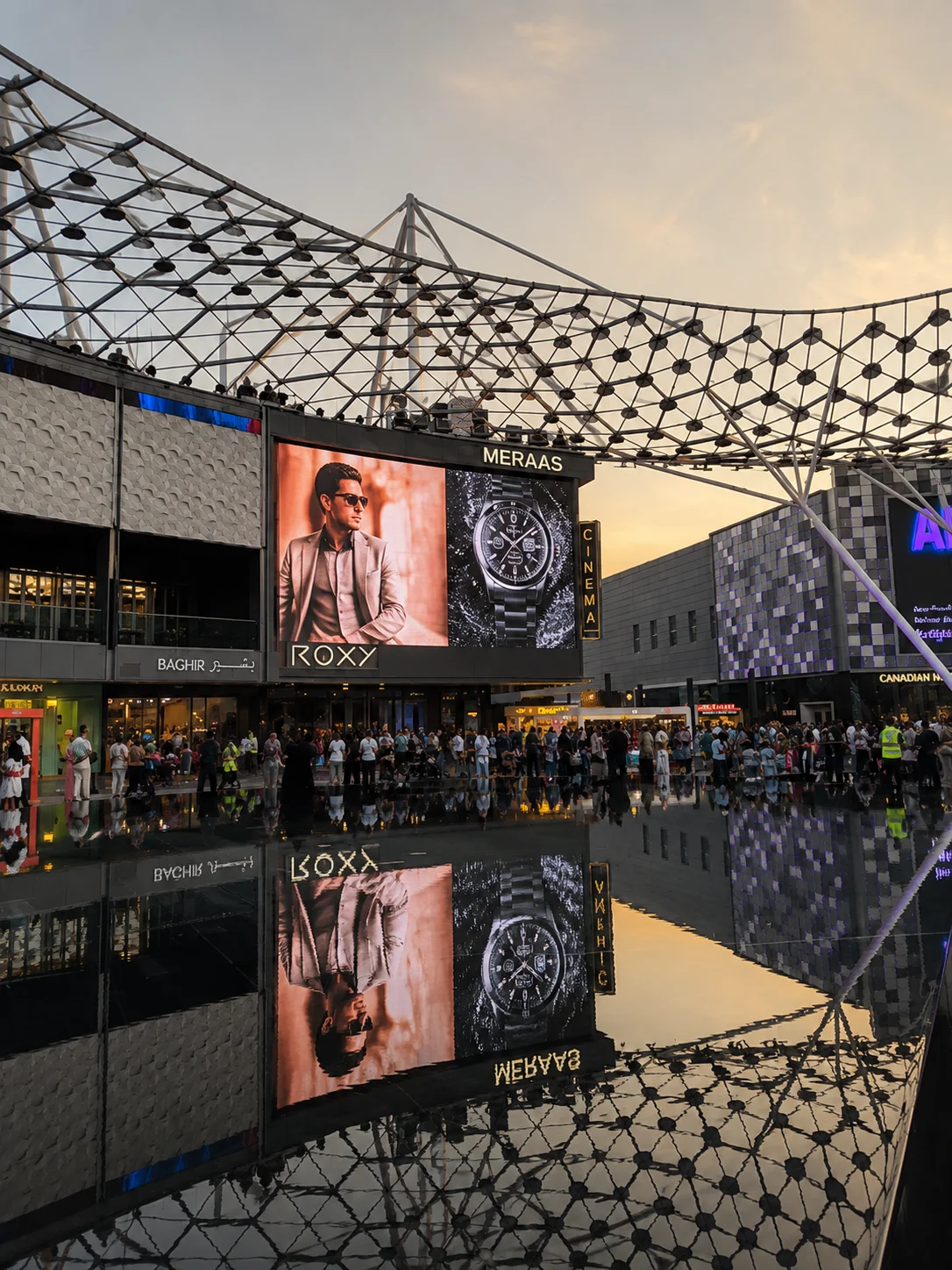

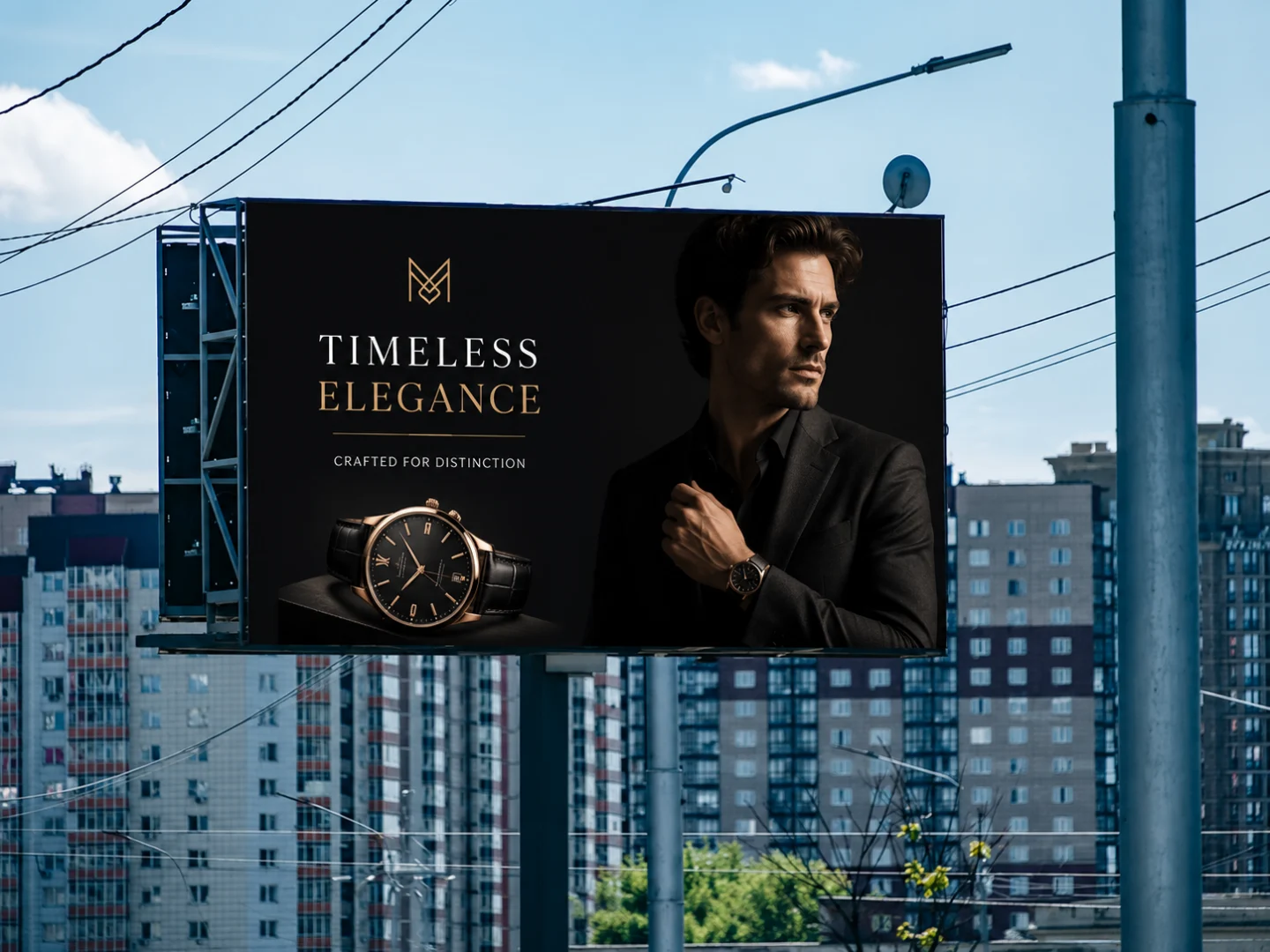

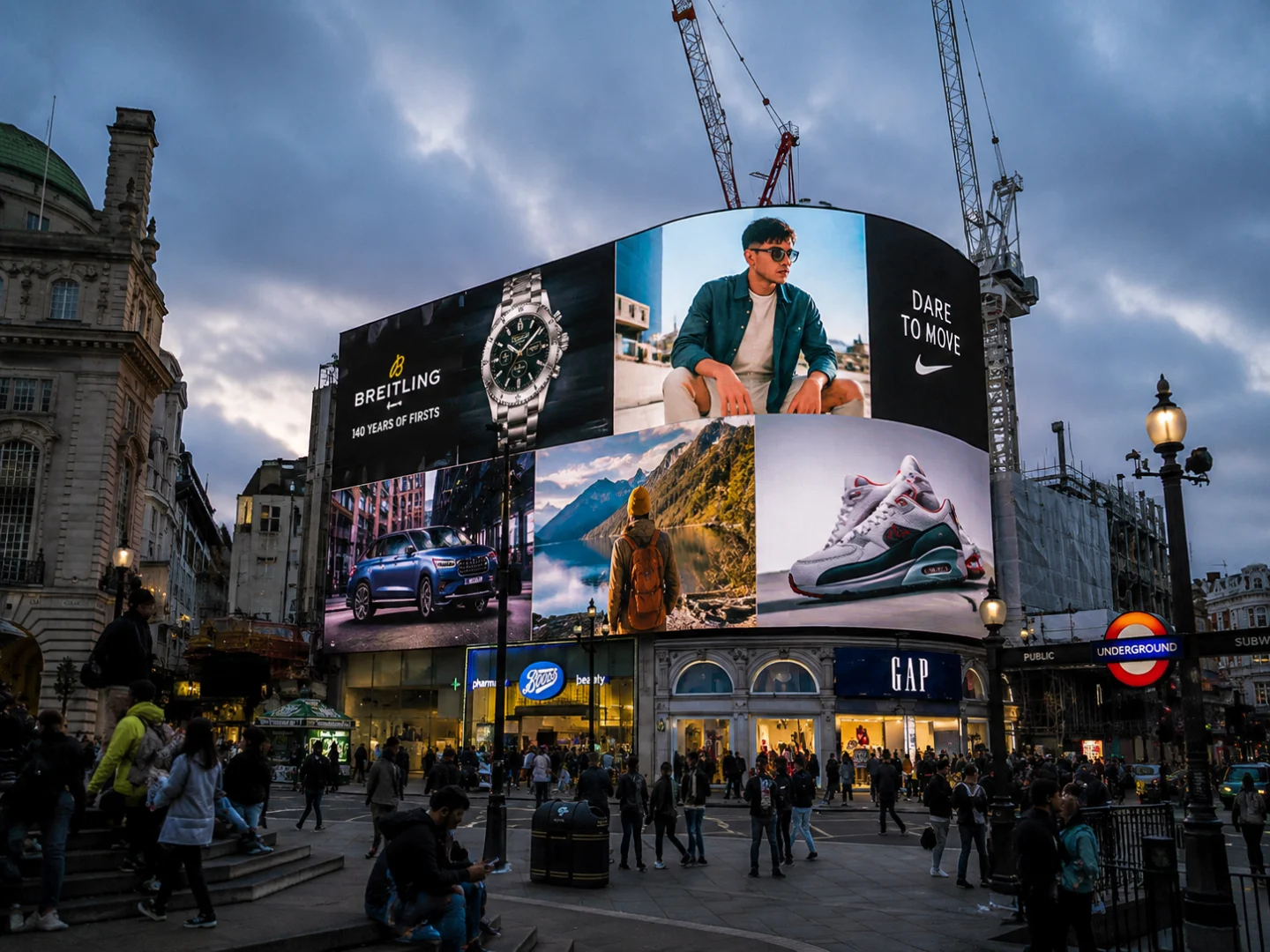

Gallery
Specifications
Technical specifications.
P4.81
Cabinet Parameters
Hardware
Cabinet components.
Screw-Type Module
Glue-filled back for IP65 waterproof — front serviceable with standard screwdriver.

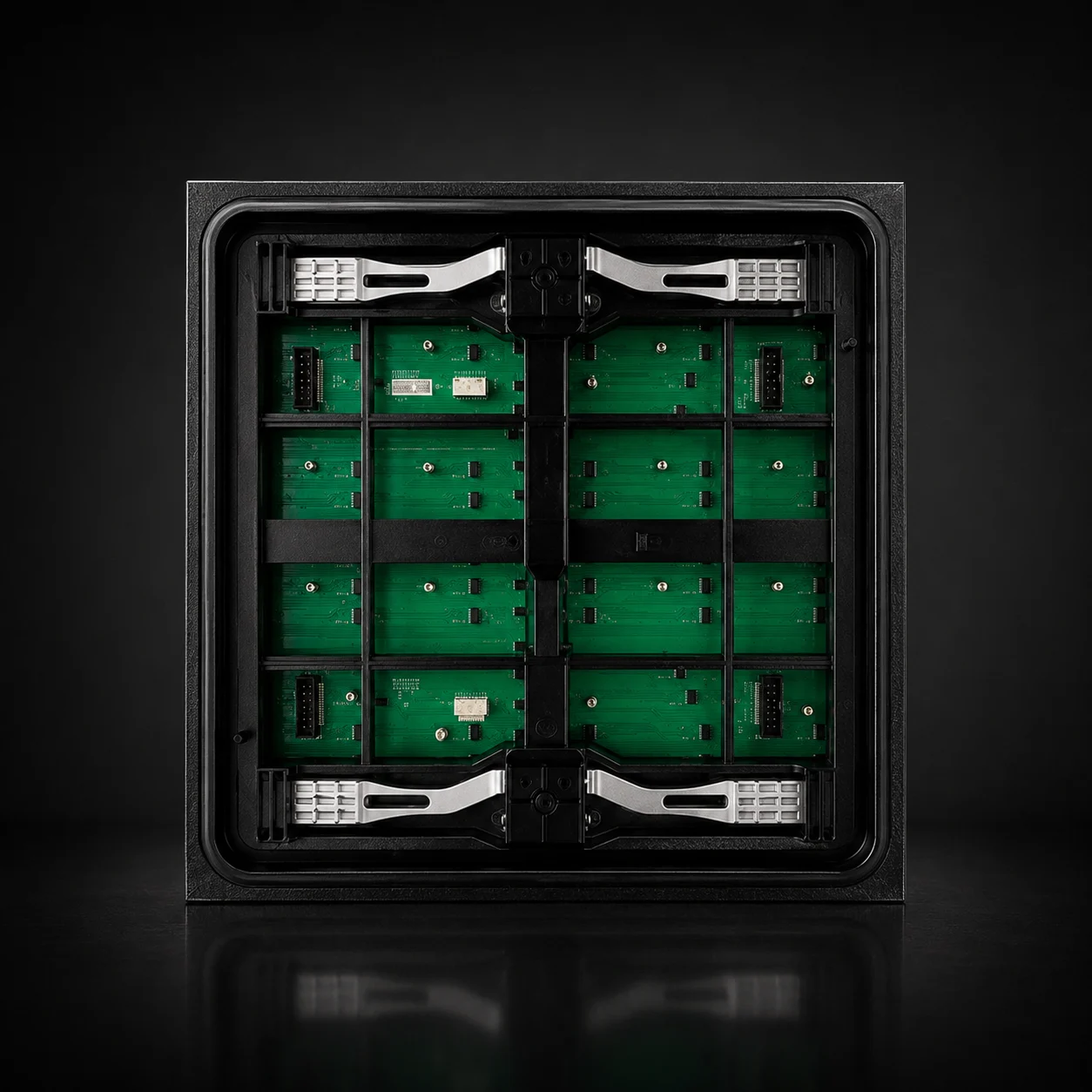

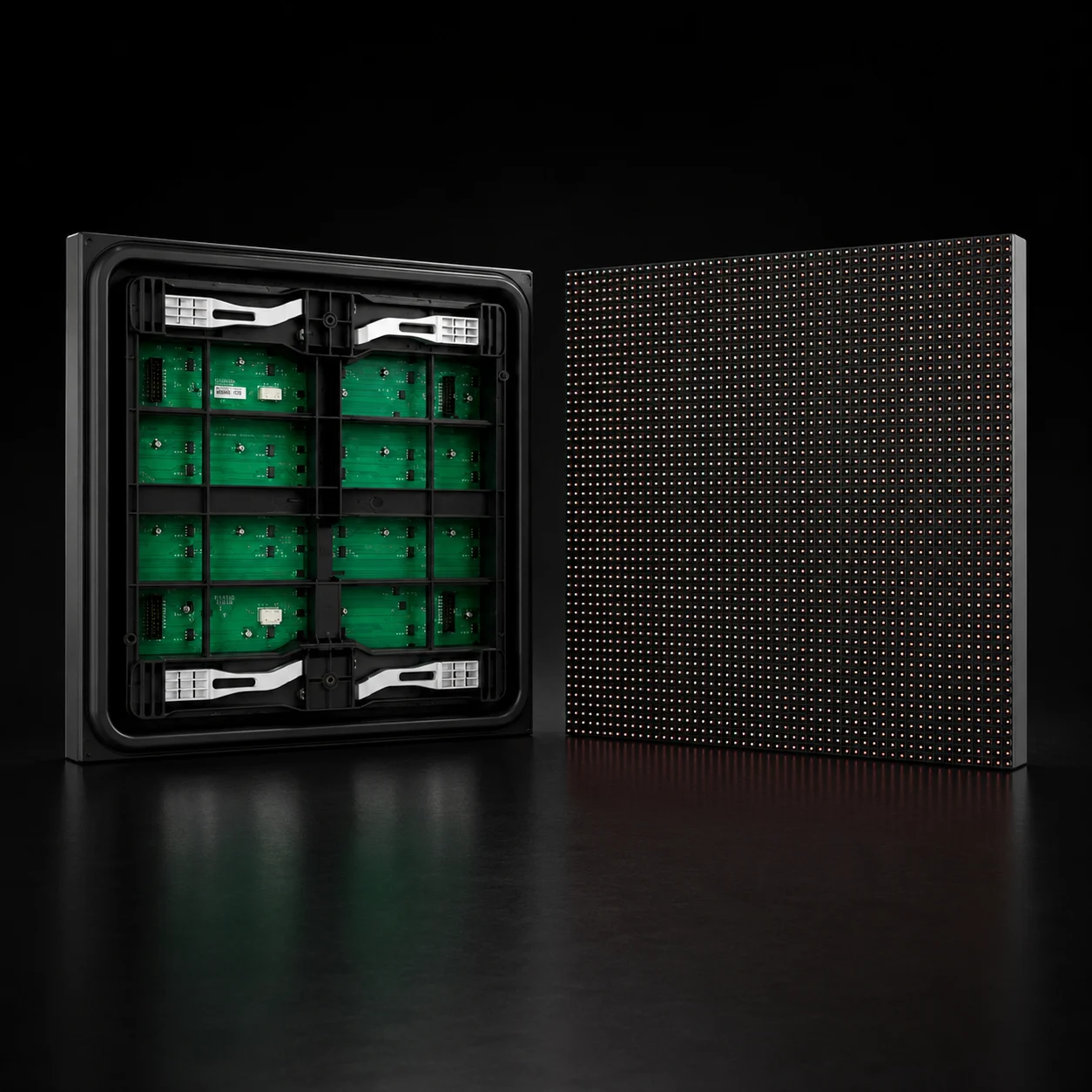

Hex Lock Module
Disassembled with hexagonal wrench — glue-filled IP54 protection.
Power Module
Built-in power supply with waterproof housing and front-access connectors.
Receiver Card
Signal receiving card mounted at front-accessible position for easy swap.
Accessories
Optional add-ons.
Stacking Bracket
Heavy-duty bracket for vertical stacking of outdoor cabinets.
Hoisting Frame
Certified hoisting frame for suspended installation configurations.
Waterproof Seal Kit
Replacement glue seal kit for module re-installation after servicing.
Lightning Arrester
Surge protection for permanent outdoor installations.
Contact
Request information.
Get a quotation, full technical specifications, and installation guidance for the Outdoor Fixed LED Display.
- Detailed datasheet
- Project-specific pricing
- Installation support
- Sample availability
